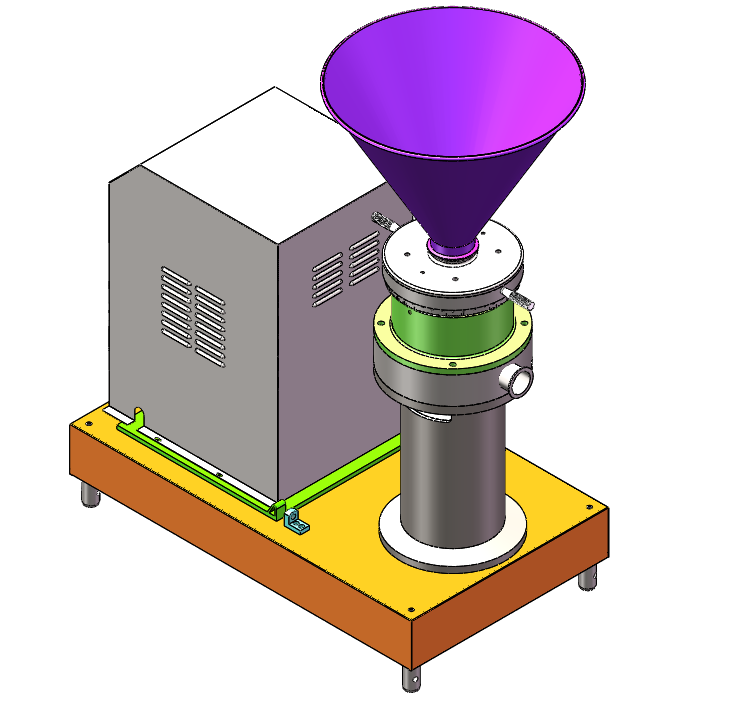

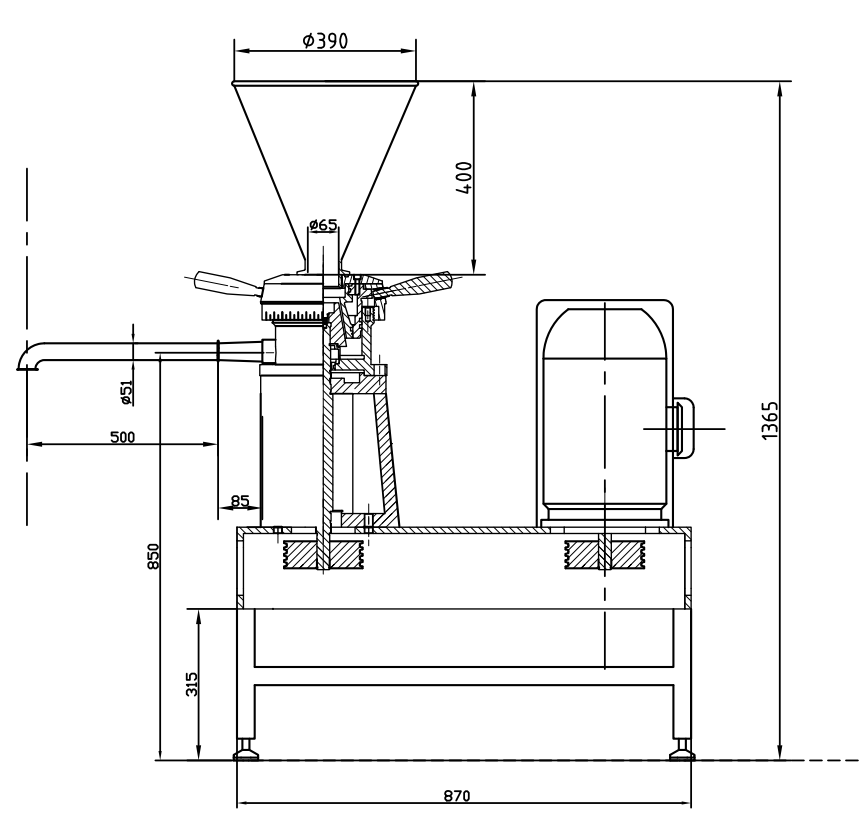

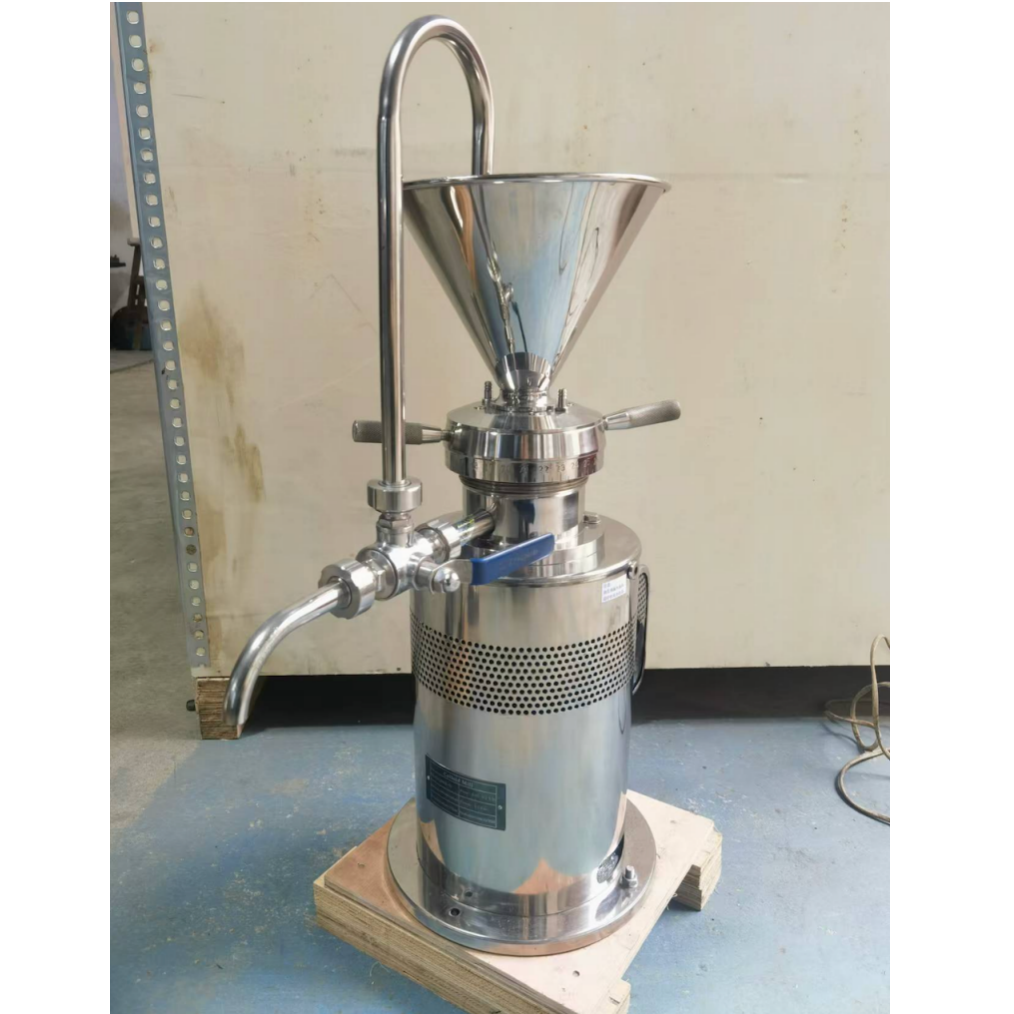

BCM-140 Colloid Mill Machine for Peanut Butter Pepper Sauce

BCM colloid mill is widely used for emulsion and sauce industry, for example peanut butter, tomato sauce, pepper sauce chili sauce etc. It equips a vertical homogenizer to process those solid/ or half solid products into fine sauce.

Availability:

Quantity:



Inquire Add to Basket

Model:
BCM-140
Brand:
Berbica
Code:
8479820090

Product Description

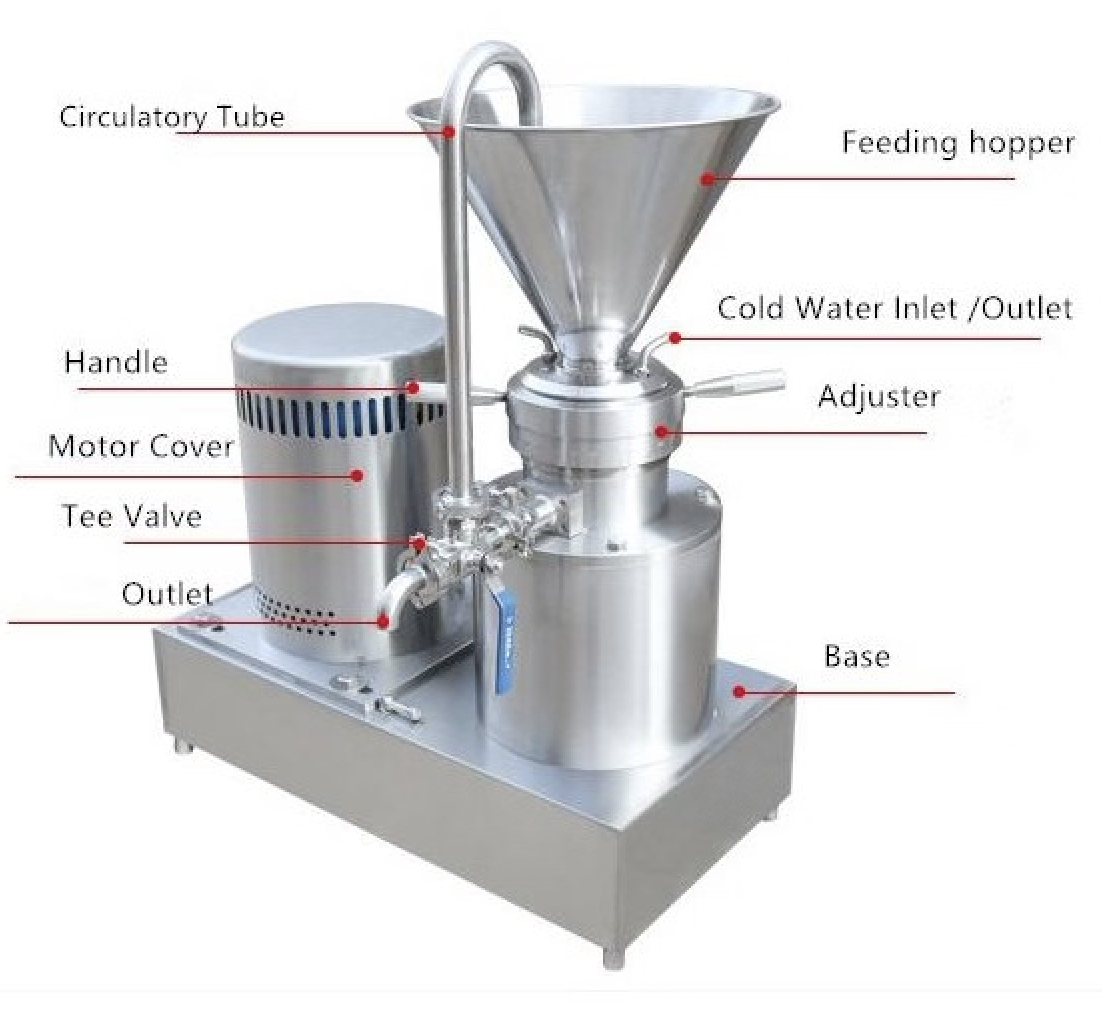

BCM Colloid mill high shear mixer machine

Overview

A colloid mill is a high-shear industrial machine used to reduce particle size, homogenize, emulsify, disperse, or grind liquid or semi-liquid materials — especially in food, pharmaceutical, chemical, and cosmetic industries

Product Description

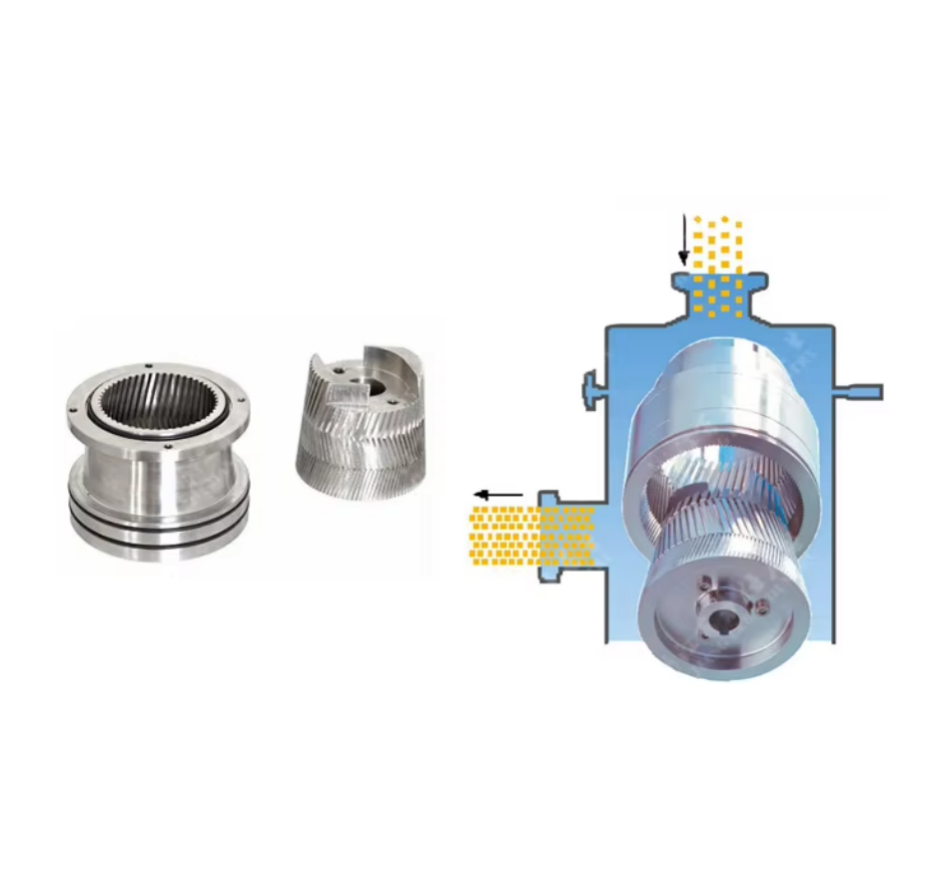

A colloid mill works by using a rotor–stator mechanism to apply intense mechanical shear to the material. This breaks down particles or droplets into very fine sizes, often in the micron or sub-micron range.

Common Applications:

Food (e.g., peanut butter, chili sauce, mayonnaise)
Pharmaceutical creams
Cosmetic emulsions
Chemical suspensions

Model	BCM-80	BCM-100	BCM-120	BCM-140
Emulsification Ability	2 micron	2 micron	2 micron	2 micron
Adjust range (mm)	1~0.01	1~0.01	1~0.01	1~0.01
Flux *1000L/H	0.3~1	0.5~2	0.7~3	1~4
Power kw	3	5.5	7.5	11
Speed r/m	2900	2900	2900	2900

The colloid mill can be used in below conditions.

-Single unit to do self circulation.

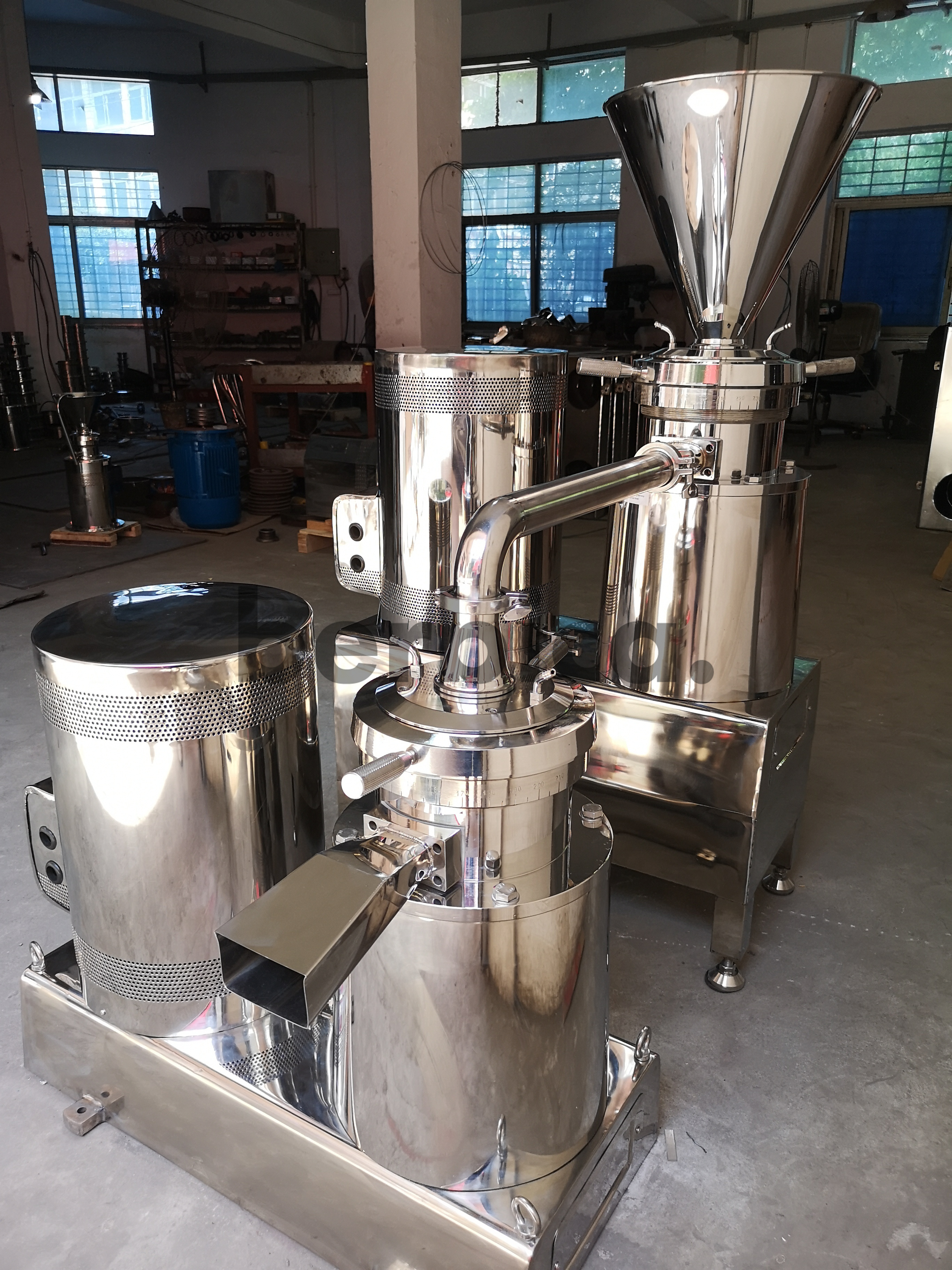

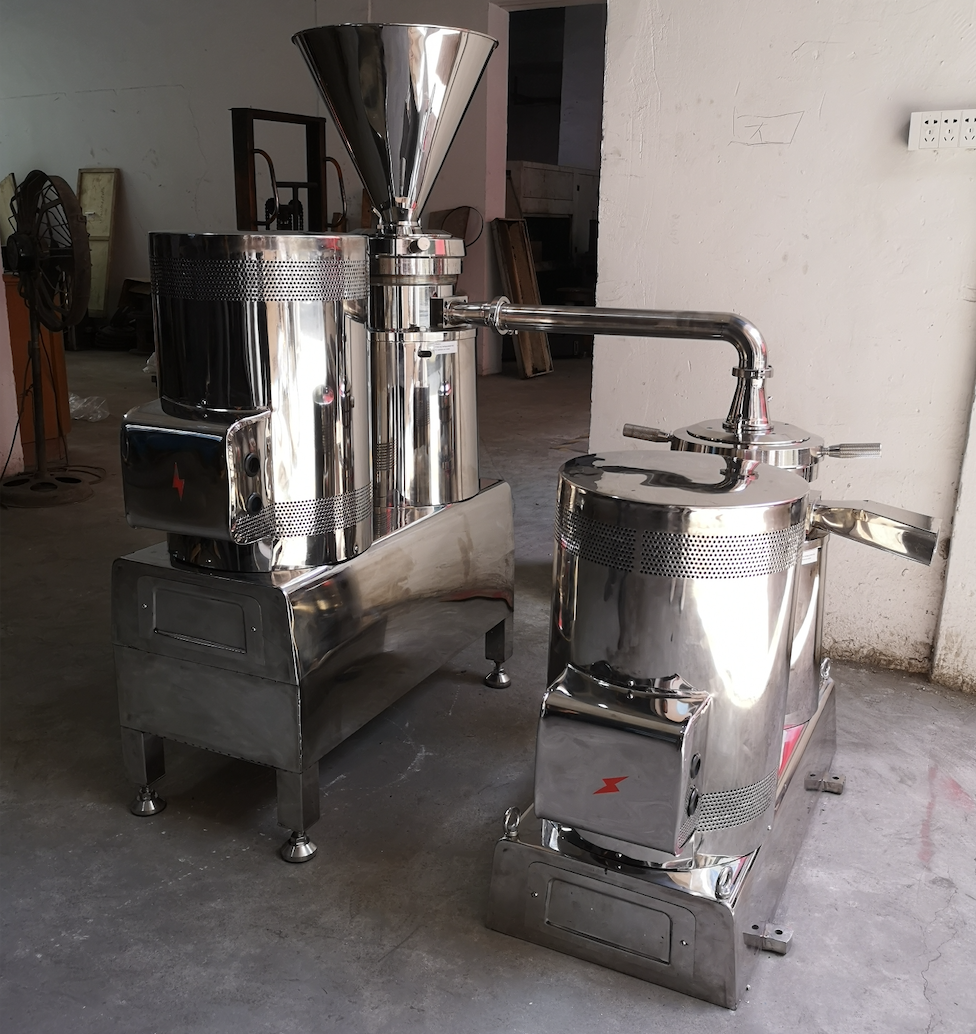

-Twins colloid mill in connections to increase emulsifying efficiency, for example we have a singpore client use two sets of colliod mills to produce pepper sauce/ Chili sauce. The first set to pre-mill wet peper pics, transfer into the second unit to make fine chili sauce with more accuracy homogenizer rotor head.

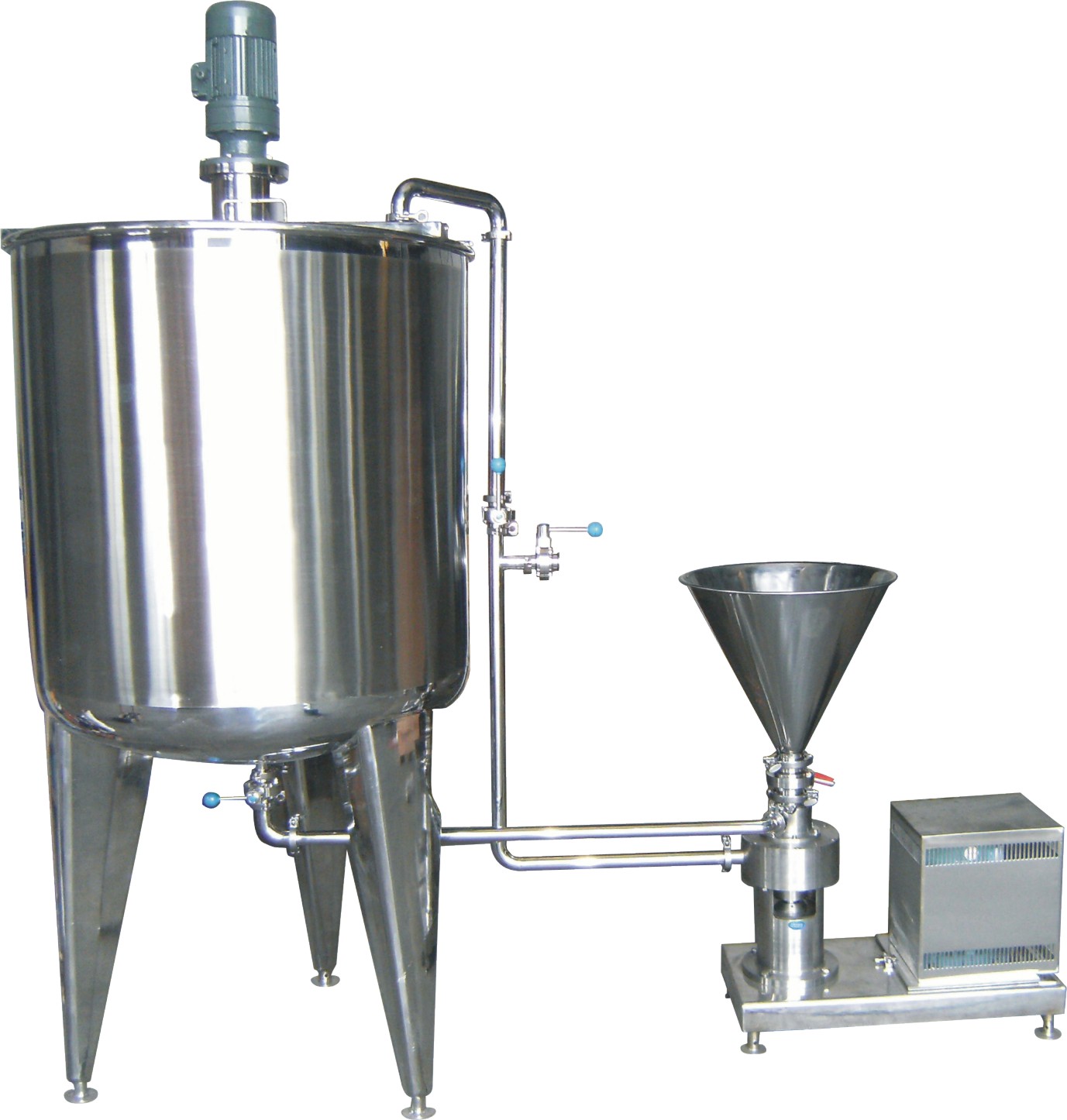

-Connect to the mixing kettle or storage tank, to do circulation, or just as a powder/half solid liquid pre-mixer colloid mill machine, tansfer to the main kettle to do the next process.

181679139440_.pic_hd Colloid mill circulation.pic

Packaging & Shipping

1331681281067_.pic

Our Services

1. 1 year warranty for all our machines.

2. Every machine date will be kept well in our company profile, provide long terms after-sales service.

3. Provide consulting, production advise, factory visting, support to build production plant etc.

4. Fast rsponse in the future services.
