BMFH
Berbica
BMFH 50-500ml
Overview
Berbica BMFH horizontal filler and mixing for food hot sauce.
It is specially designed for small batch food sauce factory.
Most of such small filler in the market they only handle common liquids like water, drinks. And then upgrade to cosmetic cream, some fine sauce. They can't handle the particle filling that may stuck the piston and nozzle head.
We designed the special model to help some of our food factories partners to deal with the hot sauce filling. Upgraded piston and nozzle is good for food sauce purpose. Imported seals & washers EU quality and meet food GMP standard.
It helped some of our clients handle small batch of food sauce filling into woozy bottles or jars and some bags.
We support customize with options for different filling ranges.

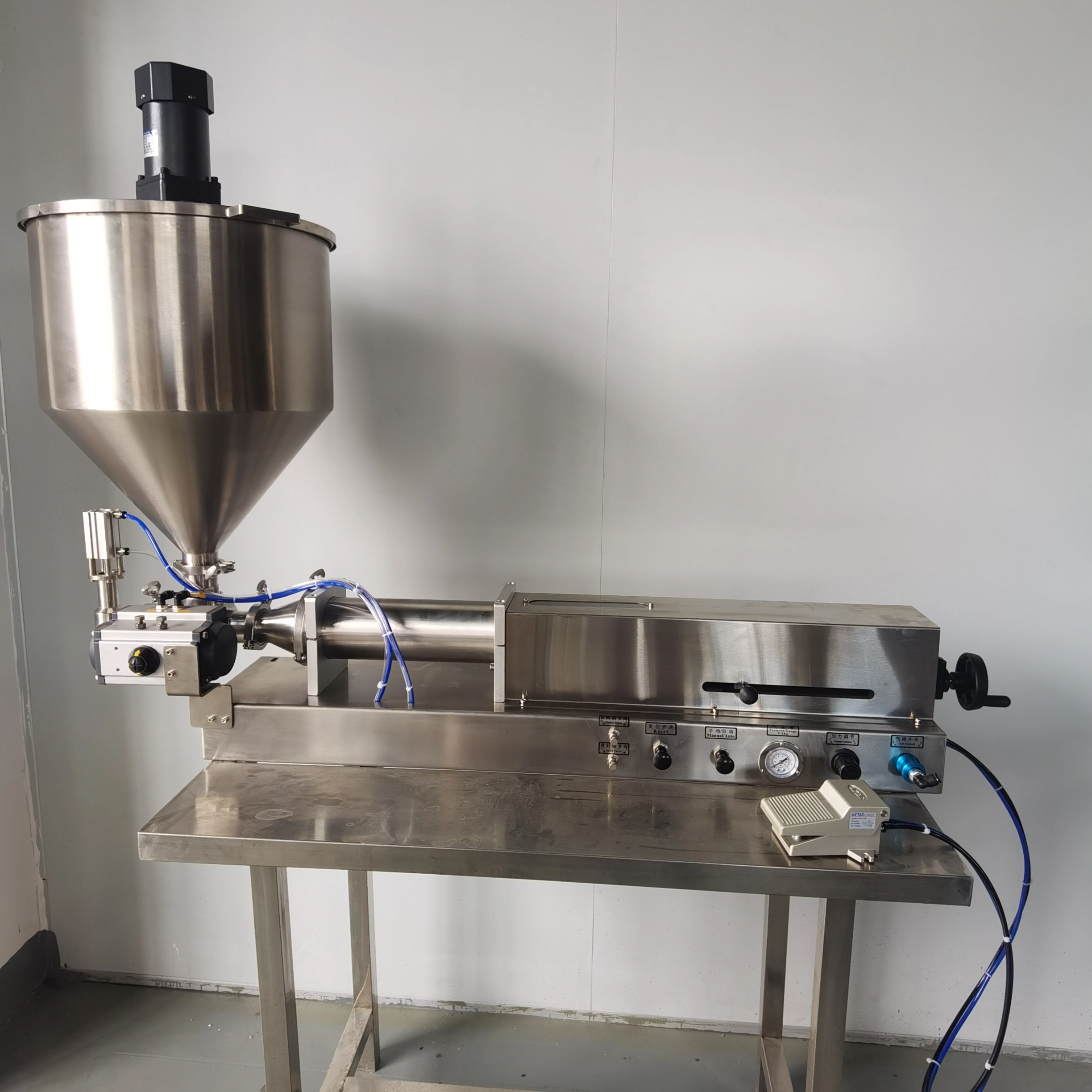

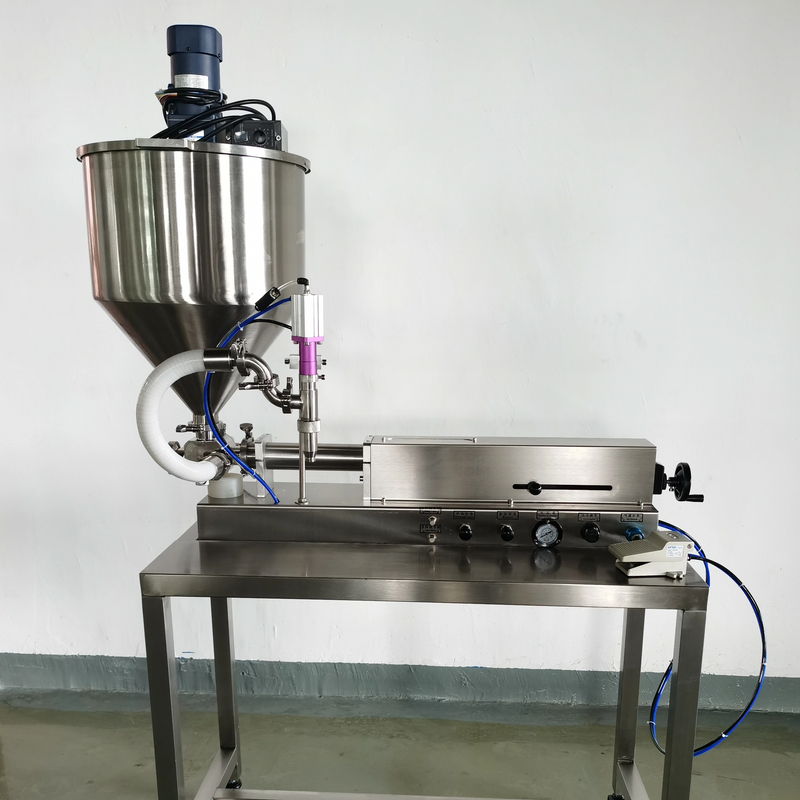

BMFH Horizontal Hot sauce filling machine with mixer hopper | |||
Specifications Models | BMFH 10-300 | BMFH 50-500 | BMFH 100-1000 |
Filling Range | 10~300 g | 50~500 g | 100~1000 g |
Work efficiency | 10~30 b/min | 10~25 b/min | 10~20 b/m |
Filling error | +-0.5g | +-0.5g | +-0.5g |
Hopper volume (Customize) | 40 liters | 40 liters | 40 litres |
Hopper function | Mixing | Mixing | Mixing |
Filling nozzle diameter | Customize | Customize | Customize |
Contact Material | SUS316L | SUS316L | SUS316L |
Filling power | Pneumatic | Pneumatic | Pneumatic |
Air pressure | 0.4~0.6Mpa | 0.4~0.6Mpa | 0.4~0.6Mpa |
Air comsuption | 25L/min | 44L/min | 80L/min |
Main seal ring brand | Italy Sealtech | Italy Sealtech | Italy Sealtech |
Main Pneumatic parts | TaiWan Airtec | TaiWan Airtec | TaiWan Airtec |
Remarks/Customize options | |||
Hopper Volume 40L. Optional support customize Hopper with Heater function and temperature control: 0~95C. Hopper mixer speed 0~60 Rpm. Air comsuption: 95L/min to 180L/min. |
Packaged with export standard wooden crate.
Wuxi Berbica Technology Co., ltd is a self - design and manufacturing company that gathers teams specialized in highly innovative industrial mixing and packaging solutions. Our main products are homogenize mixer, filling machine, pumps and full production line solutions. Headquartered in Wuxi city, China, around 100 miles from Shanghai. In 2019, we set up our first branch office in Toronto, Canada.
Berbica aims to provide customers with high quality machines and the best service support, as well as keep growing to be an ethical group company. Our independently developed and produced SP series emulsify production plant has gained a leading position in China market, benefits our partners from its features of super compact design, high efficiency, stability and user-friendly. Some of our clients have grown to be famous brands in cosmetic / food / pharmaceutical industry field.
Berbica hopes to inspire a better world f beauty through the kindness of our community, our innovative technologies, and the honesty of our words and actions.
A: Food sauce like hot sauce with crushed pepper pieces and seeds.
A: SUS316L or SS304 for options. Usually 304 is good enough for GMP food grade. Many clients choose SUS316L for the best.
A: 1 year. Provide free spare parts if any parts broken in one year in proper use.
