Overview
BMFH Small Batch Semi Automatic Liquid cream Filler Filling Machine
It is specially designed for small batch liquids, cream or lotion etc. Cheaper price, easy to use. Many workshop grows up begins with such small batch filling equipment. Filling range is adjustable. Pneumatic power for clean souce.
Imported seals & washers EU quality and meet food GMP standard.
It helped some of our clients handle small batch filling process.
We support customize with options for different filling ranges.
BMFH Horizontal Hot sauce filling machine with mixer hopper | |||
Specifications Models | BMFH 5-300 | BMFH 50-500 | BMFH 100-1000 |
Filling Range | 10~300 g | 50~500 g | 100~1000 g |
Work efficiency | 10~30 b/min | 10~25 b/min | 10~20 b/m |
Filling error | +-0.5g | +-0.5g | +-0.5g |
Hopper volume (Customize) | 40 liters | 40 liters | 40 litres |
Hopper function | Mixing | Mixing | Mixing |
Filling nozzle diameter | Customize | Customize | Customize |
Contact Material | SUS316L | SUS316L | SUS316L |
Filling power | Pneumatic | Pneumatic | Pneumatic |
Air pressure | 0.4~0.6Mpa | 0.4~0.6Mpa | 0.4~0.6Mpa |
Air comsuption | 25L/min | 44L/min | 80L/min |
Main seal ring brand | Italy Sealtech | Italy Sealtech | Italy Sealtech |
Main Pneumatic parts | TaiWan Airtec | TaiWan Airtec | TaiWan Airtec |
Remarks/Customize options | |||

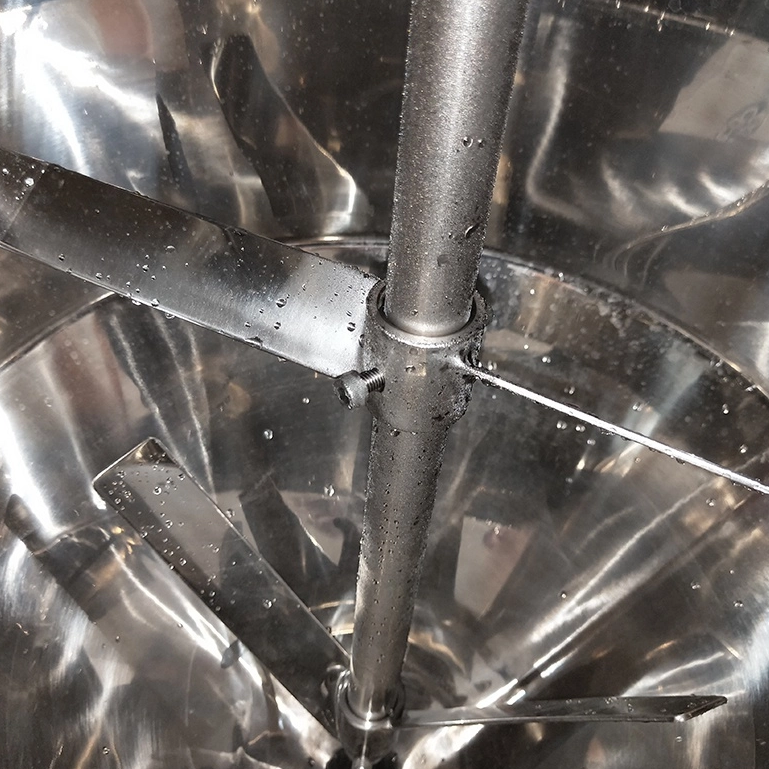

Hopper Volume 40L (Optional). It can suction liquids directly from liquid drum. Optional support customize Hopper with Heater function and temperature control: 0~95C. Hopper mixer speed 0~60 Rpm.(Optional) Air comsuption: 95L/min to 180L/min. |
Packaged with export standard wooden crate.
Wuxi Berbica Technology Co., ltd is a self - design and manufacturing company that gathers teams specialized in highly innovative industrial mixing and packaging solutions. Our main products are homogenize mixer, filling machine, pumps and full production line solutions. Headquartered in Wuxi city, China, around 100 miles from Shanghai. In 2019, we set up our first branch office in Toronto, Canada.
Berbica aims to provide customers with high quality machines and the best service support, as well as keep growing to be an ethical group company. Our independently developed and produced SP series emulsify production plant has gained a leading position in China market, benefits our partners from its features of super compact design, high efficiency, stability and user-friendly. Some of our clients have grown to be famous brands in cosmetic / food / pharmaceutical industry field.
Berbica hopes to inspire a better world f beauty through the kindness of our community, our innovative technologies, and the honesty of our words and actions.
A: Food sauce like hot sauce with crushed pepper pieces and seeds.
A: SUS316L or SS304 for options. Usually 304 is good enough for GMP food grade. Many clients choose SUS316L for the best.
A: 1 year. Provide free spare parts if any parts broken in one year in proper use.
