Berbica BPM Planetary Mixer
What is a Planetary Mixer?

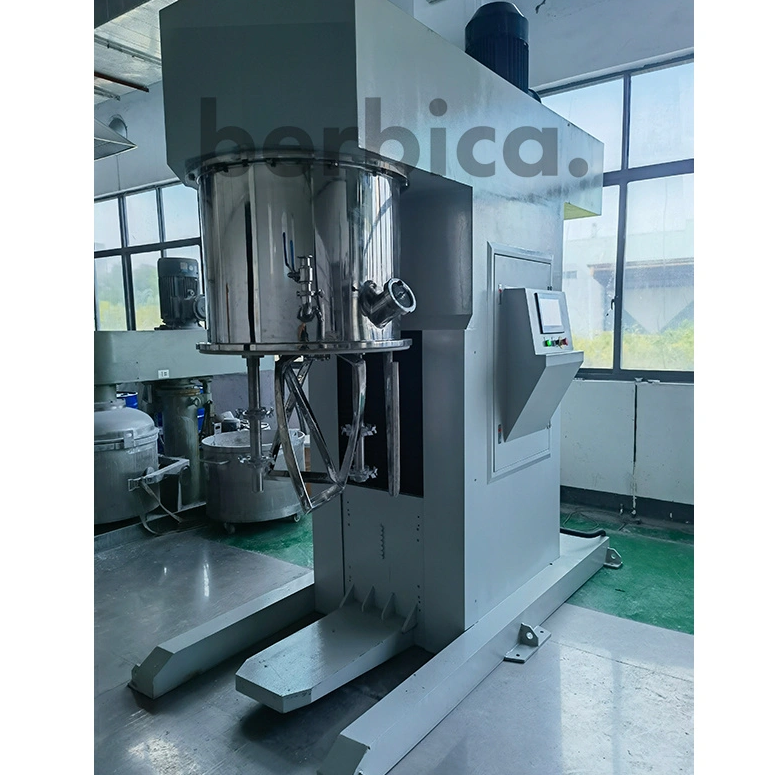

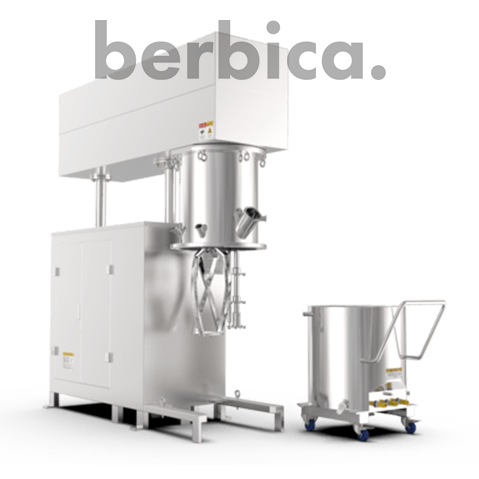

Berbica Double planetary mixer consists of two identical blades that rotate on their own axes, while they orbit the mix vessel on a common axis. The blades continuously advance along the periphery of the vessel, removing material from the vessel wall and transporting it to the interior. The two blades pass through every point in the product zone, physically contacting the entire batch. Different to homogenizing machines, a planetary mixer rely on its strong structure rotary functions providing powerful mixing process. Combines to the vacuum system which is also important for those thick products to remove its air bubbles.
What does a Double Planetary Mixer do?
The Berbica Double Planetary Mixer turns over thick, sticky or putty-like materials with great efficiency through a kneading action to the batch which smooths out its consistency and breaks up agglomerates. The same planetary agitation is useful for high-precision granulation and vacuum drying operations. It is mainly applied in the products with high adhesives, thick features etc. For example, Epoxy resin, polymer lithium-ion battery electrolyte, silicone adhesives.
Technical Parameters
BPM Model | 5 | 50 | 100 | 200 | 300 | 500 | 1000 | 1300 |
Design Volume (Liter) | 8 | 57 | 108 | 200 | 350 | 505 | 1045 | 1300 |
Work Capacity (Liter) | 5 | 40 | 80 | 160 | 300 | 400 | 800 | 1000 |
Stirring Power (kw) | 1.5 | 5.5 | 7.5 | 11 | 15 | 22 | 37 | 45 |
Disperse Power (kw) | 1.5 | 7.5 | 11 | 18.5 | 22 | 30 | 55 | 55 |
Revolution Speed (RPM) | 0~65 | 0～65 | 0～65 | 0～65 | 0~30 | 0~30 | 0~30 | 0~30 |
Stirring speed (RPM) | 0~170 | 0～170 | 0～170 | 0～170 | 0~98 | 0~98 | 0~75 | 0~75 |
Disperse Speed (RPM) | 0~1400 | 0～1400 | 0～1400 | 0～1400 | 0～1400 | 0～1400 | 0～960 | 0～960 |
Scraper Speed (RPM) | 0~65 | 0～65 | 0～65 | 0～65 | 0～30 | 0～30 | 0～30 | 0～30 |
Vacuum (Mpa) | -0.09 | -0.09 | -0.09 | -0.09 | -0.09 | -0.09 | -0.09 | -0.09 |
Maximum Press force (kg) | 5000 | Refers to Separate Press Machine Parameters |
Hydraulic Power (kw) | 1.5 | 1.5 | 3 | 4 | 4 | 4 | 4 | 6 |
Vacuum Power (kw) | 0.37 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | 3 | 3 |
Heating Power (kw) | 2 | 4 | 6 | 9 | 12 | 18 | 18 | 18 |
Layout Dimension mm | L | 990 | 1200 | 1550 | 1700 | 2000 | 2150 | 2450 | 2650 |
W | 910 | 760 | 800 | 950 | 1100 | 1250 | 1580 | 1680 |
Close H | 2360 | 2100 | 2650 | 2760 | 3160 | 3380 | 3860 | 4010 |
Lift H | 2360 | 2750 | 3350 | 3660 | 4100 | 4400 | 5110 | 5420 |
PS* Support OEM Capacity & Dimensions.

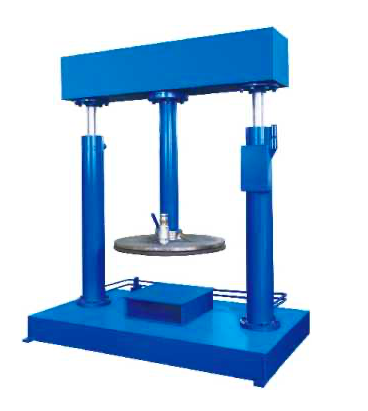

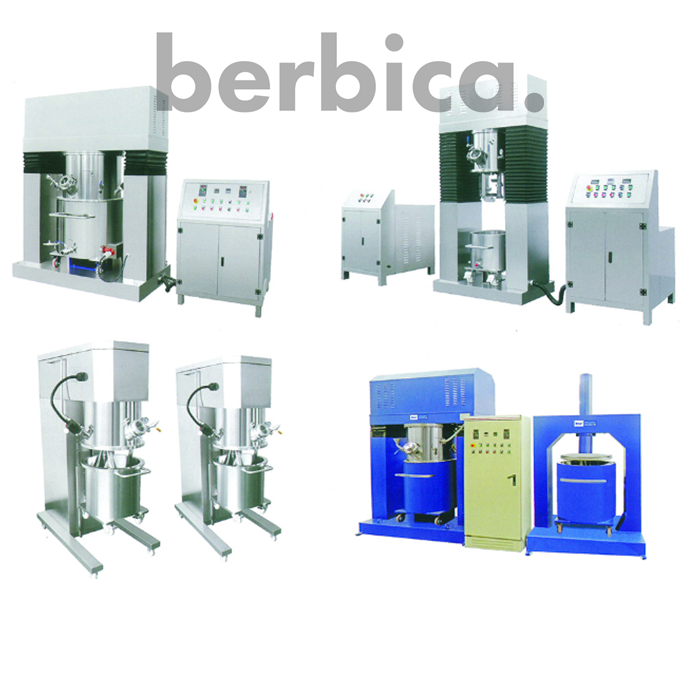

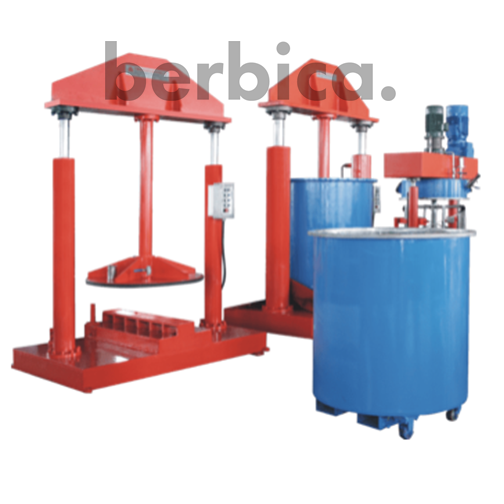

BP Separate Press Machine, to press the sticky products out of the drum after planetary mixer process.
In most cases, planetary mixer makes product with a very high viscosity that is not able to flow out of the tanks by itself, stick to the tank walls. A separate Press out machine helps.

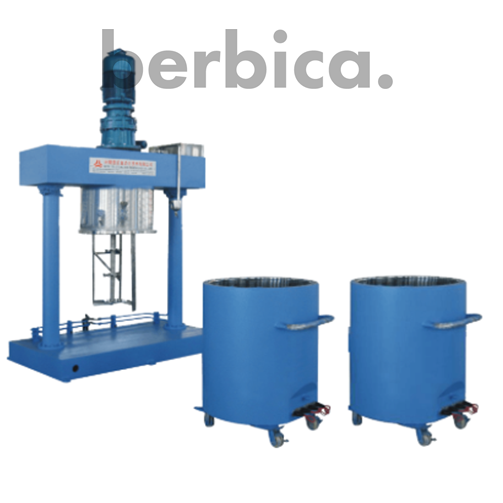

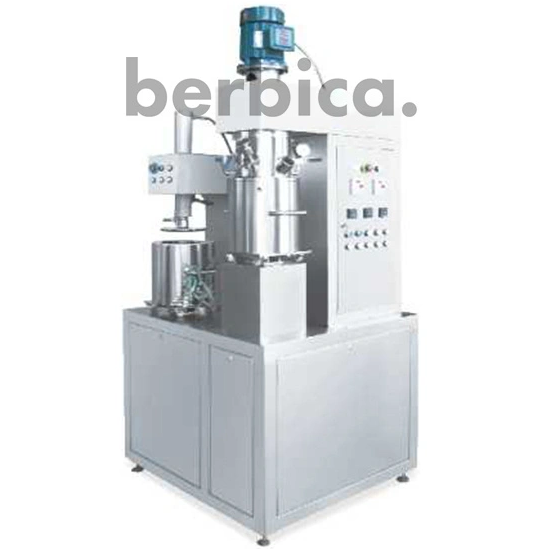

*BPM-5L model designs for laboratory research purpose, it combines planetary mixer and press machine all in one. The rest production models make mixer and press machine separately, with two moveable tanks / drums.
BP Model | 50 | 100 | 200 | 300 | 500 | 1000 | 1300 |
Press Diameter (mm) | 400 | 500 | 570 | 750 | 860 | 1100 | 1165 |
Hydraulic Cylinder | Single | Double | Double | Double | Double | Double | Double |
Press Distance (mm) | 600 | 700 | 1100 | 900 | 1020 | 1350 | 1500 |
Hydraulic pressure (Mpa) | 6.3~16 | 6.3~16 | 6.3~16 | 6.3~16 | 6.3~16 | 6.3~16 | 6.3~16 |
Press power (kg) | 15000 | 29000 | 29000 | 50000 | 65000 | 80000 | 100000 |
Motor power (kw) | 1.5 | 2.2 | 2.2 | 3 | 4 | 5.5 | 5.5 |
Dimension (mm) | L | 1000 | 1300 | 1200 | 1800 | 1930 | 2050 | 2250 |
W | 600 | 720 | 760 | 1000 | 1150 | 1310 | 1440 |
H1 | 1286 | 1370 | 1650 | 1752 | 1980 | 2450 | 2935 |
H2 | 1886 | 2070 | 2750 | 2652 | 3000 | 3800 | 4435 |
