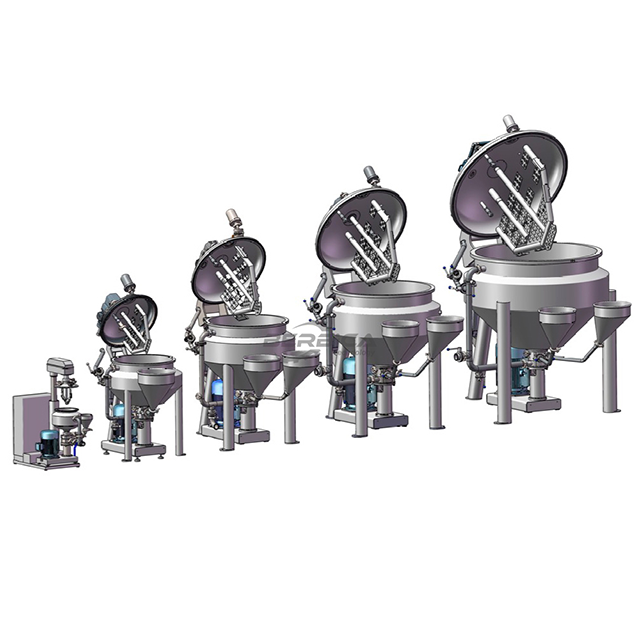

BSP - 5L Capacity Standard Lab Homogenize Mixing Machine - NEW

Model

BSP-5

BSP-100

BSP-250

BSP-500

BSP-1000

Full volume(L)

6

120

300

515

1000

Max. work capacity(L)

5

90

230

430

850

Contact material

SUS316/304

SUS316/304

SUS316/304

SUS316/304

SUS316/304

Anchor stirrer power (KW)

0.25

0.75

1.1

1.5

3

Stirrer Mixing speed (rpm)

0~86

14~43

11~32

8~26

7~20

Homogenize power (kw)

2.2

7.5

15

15/22

22

Homogenize speed (rpm)

0-2880

0-2880

0-2880

0-2880

0-2880

Vacuum System

Support

Support

Support

Support

Support

Heating system

Support

Support

Support

Support

Support

Cover lift and down

Electrical

Hydraulic

Hydraulic

Hydraulic

Hydraulic

Cover connections

Watch window, light window, spray ball clean,
vacuum, spare one

Bottom homogenize
connections

Two material hopper inlets, circulation pipe,
fine product outlet

The Standard Production Plant BSP is the most efficient production plant for fine food on the market. Such as Mayonnaise, ketchup Sauces etc.
The machine being integrated into the SP plant, it only needs 5 minutes to produce 500L of mayonnaise - and this including feeding of the raw material, emulsifying and discharge!

ADVANTAGEs
-Very short batch times, min to 5 minutes only.
-Quite compact size, save space. New lift up way, make it suit to work in a short space.
-Consistently high product quality.
-Excellent homogenization through rapid emulsification.
-User-friendly operation.
-Quick and easy to clean.
-Used to manufacture a wide range of products.
-Stirrer and disperson deivce with speed control.
-Easy to add additive through the separate hoppers.
-Suitable for highest viscosity products.

-The first manufacturer in China to compare with IKA in SPP plant system.
