BVM -10G Liters Lab Homogenizer Kettle Machine

2/5/10 Liters homgoenizer mixing capacity, special desgin for lab researh or small production purpose. Easy operation on the table. Transparecy borosilicate glass kettle body. Germany brand homogenizer motor. Speed adjustable. Cover lift up and down. Kettle easy tilt.

Kindly view below datasheet for more infomation.

Availability:

Quantity:



Inquire Add to Basket

Model:
BVM-2G/ 5G/ 10G
Brand:
BERBICA
Code:
8479820090

Product Description

BVM -10G Liters Lab Homogenizer Kettle Machine

1/ 2 / 5 / 10 Liters Laboratory Use Small Batch Cosmetic Homogenizer Mixing Machine THESE are small machines specially used for laboratory purposes, help you explore the accuracy research with temperature/vacuum/homogenize speed/homogenize time controllably and adjustable. Setup the parameters you want, find out the best formula. Working capacity from 1 Liter to 30 Liters. B-Berbica. V-Vacuum function. M- Mixer machine. G-GLASS. S-STAINLESS STEEL. 2/5/10-Volume Liters We have both glass kettles and stainless kettles, glass one only applies to small lab use kettles, which you can see through to know the formula mixing test status. Since the glass only can be made in a single layer, it doesn't support a heating function. Stainless steel is widely used for both laboratory kettle and large-scale batch production mixer machines. We can make the kettle with three layers, support heating function and keep warm, cooling and temperature control system.
Berbica BVM Laboratory Vacuum Emulsify Mixer Machine
No.	Technical Parameters	BVM-1~2G	BVM-5G	BVM-10G
1	Work Capacity	1~2 Liters	2~5 Liters	4~10 Liter
2	Mixing Method & Speed Adjust Range	Homogenizer 0~12,000 RPM	Homogenizer 0~12,000 RPM	Homogenizer 0~12,000 RPM
2	Mixing Method & Speed Adjust Range	Scraper Mixer 0~180 RPM	Scraper Mixer 0~180 RPM	Scraper Mixer 0~180 RPM
3	Kettle Material Three Options	Borosilicate Glass	Borosilicate Glass	Borosilicate Glass
4	Contact Product Material Two options	SS316 or SS304	SS316 or SS304	SS316 or SS304
5	Vacuum Function & Display	Yes -0.07Mpa	Yes -0.07Mpa	Yes -0.07Mpa
6	Heating Function & Display	Up to 200C	Up to 200C	Up to 200C
7	Electricity Supply	220V 50/60HZ	220V 50/60HZ	220V 50/60HZ
8	Homogenizer power	0.5kw	0.5kw	0.5kw
9	Scraper power	0.25kw	0.25kw	0.25kw
10	Dimension (Kettle lift up)	580430850~1150mm	600450880~1180mm	650500900~1200mm
11	Net Weight	60kg	70kg	80kg
12	Desktop Design	Yes	Yes	Yes
13	Kettle cover lift up and down	Yes	Yes	Yes
14	Kettle tilt	Yes	Yes	Yes
15	Bottom Drain	Yes	Yes	Yes
16	Production period	20 days	20 days	20 days
17	Support Customize	YES	YES	YES

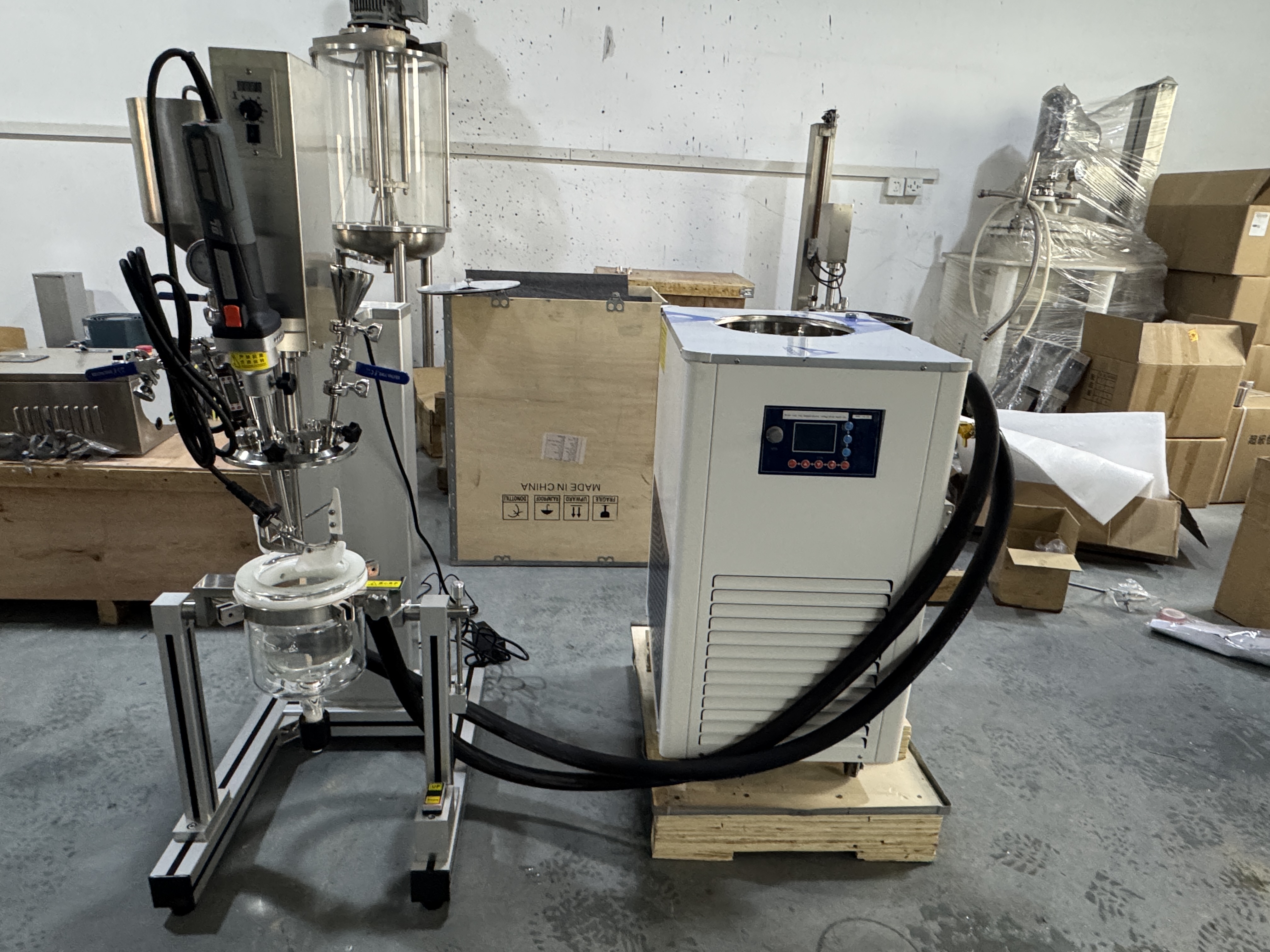

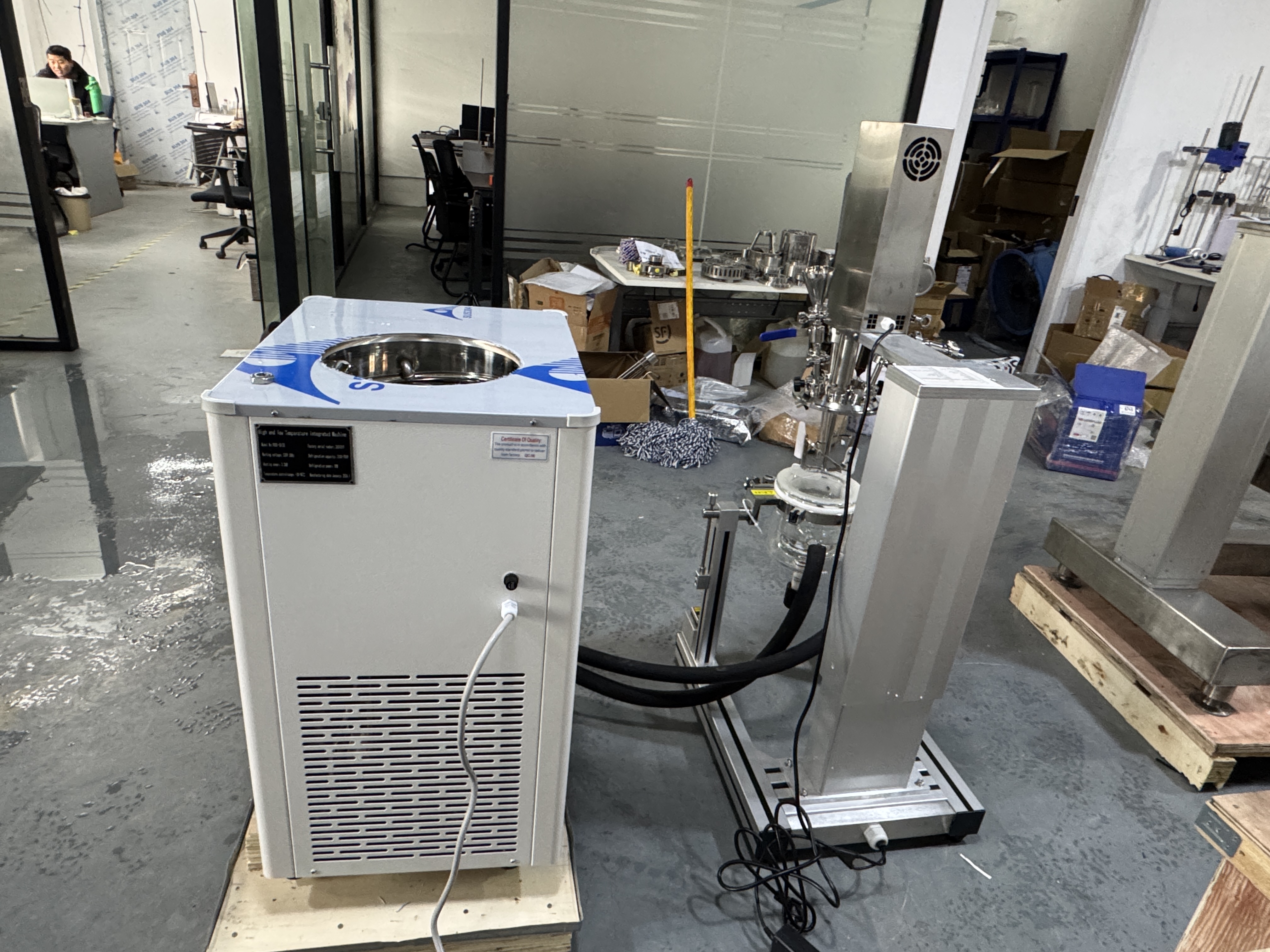

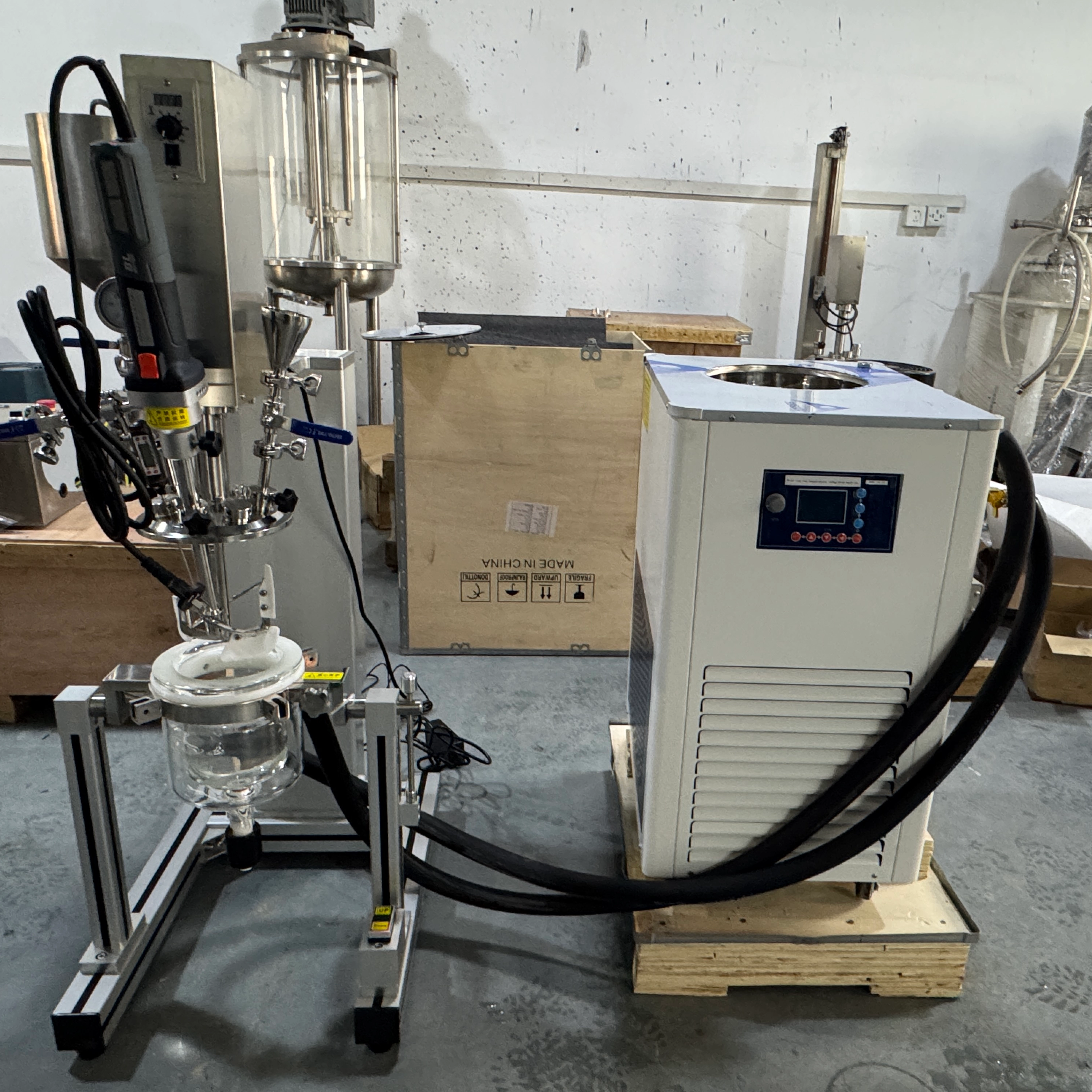

The Below project photo is BVM-1 liters vacuum emulsifying mixer shipped to Myanmar client. It uses transparency glass kettle with two layers - one jacket for hot/chill water circulation. Equip a BHC-1 heat and chill two-in-one machine, provide either hot water or chill water to the kettle jacket, satsify the setup temperature.

Vacuum system also equiped through a small oil type vacuum pump. The kettle cover uses electic lift up and down, kettle body support tilt and bottom discharge.

Homogenizer 8,000~30,000 rpm. Scraper mixer 0~200 rpm. Vacuum up to -0.08 mpa. Heat up to 99 degree (use water circulation). If use heat oil circulation, the temp reaches over 150C.

It is very easy and stable use type laboratory homogenizer system, no complicate maintenance requirements. Hot-sale popular model.

Front

Back
