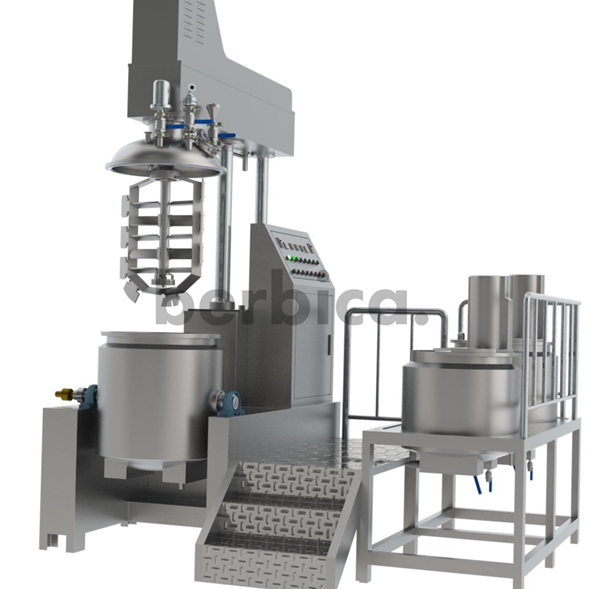

BVM-350L Vacuum Emulsifying Mixer Cosmetic Making Machine

BVM-350L main kettle volume is 350 liters, the best suit working capacity ranges from 100 ~ 300 liters. Three layers stainless steel kettle with heating system. Vacuum function reduce bubbles during the product mixing process. Water and oil tank optional (pre-mix tanks).

Please check the Datasheet excel form below for more details.

Material:	SUS316L and SS304
Availability:

Quantity:



Inquire Add to Basket

Model:
BVM-350
Brand:
Berbica
Code:
8479820090

Product Datasheet

BVM - 350L Cosmetic Making Vacuum Emulsifying Mixer Machine
No.	Technical Parameters	BVM-350	BVM-650	BVM-1000
1	Best Work Capacity	100～280 Liters	200～520 Liters	300～800 Liters
2	Mixing Method & Speed Adjust Range	Homogenizer 0~3,600 RPM	Homogenizer 0~3,600 RPM	Homogenizer 0~3,600 RPM
2	Mixing Method & Speed Adjust Range	Double direction Scraper Mixer 0~65 RPM	Double direction Scraper Mixer 0~45 RPM	Double direction Scraper Mixer 0~45 RPM
3	Kettle Material Two Options	Stainless steel 316 or 304	Stainless steel 316 or 304	Stainless steel 316 or 304
4	Contact Product Material Two options	SS316 or SS304	SS316 or SS304	SS316 or SS304
5	Vacuum Function & Display	Yes -0.08Mpa	Yes -0.08Mpa	Yes -0.08Mpa
6	Heating Function & Display	Up to 200C	Up to 200C	Up to 200C
7	Heating Methods	Electrical - water or oil or Steam heating	Electrical - water or oil or Steam heating	Electrical - water or oil or Steam heating
8	Electricity Supply Support Customize	220V ~ 600V 50/60HZ	220V ~ 600V 50/60HZ	220V ~ 600V 50/60HZ
9	Homogenizer power	4kw	11kw	15kw
10	Scraper power	2.2kw	4 kw	4 kw
11	Dimension (Kettle lift up)	200013502750~3850mm	250013503230~4560mm	270013503230~4700mm
12	Stairs & Platform option	Yes	Yes	Yes
13	Pre-mix material tank option	Oil & Water phase tank	Oil & Water phase tank	Oil & Water phase tank
14	Wheels moveable Design	Yes	Yes	Yes
15	Kettle cover lift up and down	Yes	Yes	Yes
16	Kettle tilt	Yes	Yes	Yes
17	Bottom Drain	Yes	Yes	Yes
18	Production period	50 days	50 days	60 days
19	Support Customize	YES	YES	YES

BVM series vacuum emulsifying mixing system is still the most widely used model. It is the upgraded version of BH series easy stand homogenizer. You can see it is multifuctional or optional- Heating system, vacuum system, water and oil pre-mix tanks, lift up and down the cover, and even scraper kettle wall clean mixer for sticky products. Those functions make the machine suit for more complicate production process, widely liquid emulsion product appliable. Volume Capacity various from 1 liter to 5,000 liters or even larger.

Feel free to contact us for more information.

Below is a BVM-5000L vacuum emulsifying mixer we made for a customer in Canada, a famous cosmetic factory owned by Estee Lauder group.

Canada 5000L Homogenizing kettle

The homogenizer mixing system test in customer's facility.

Canada 5000L mixing kettle

Corner of our Mixing Machine Assemble Factory.

14181692694162_.pic

All of our finished machineries were packed well by plywood case, waiting for loading and shipment.

14151692694031_.pic_hd
