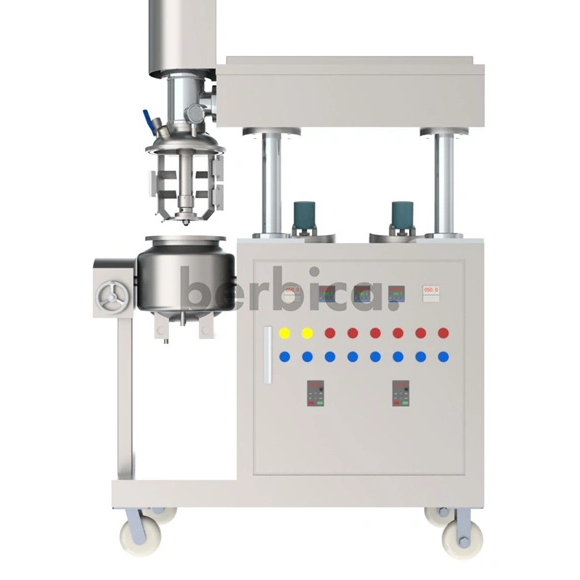

BVM - 5/10L Laboratory Vacuum Emulsifying Homogenize Mixer
Product Description
2 / 5 / 10 Liters Laboratory Use Small Batch Cosmetic Mixing Machine
THESE are small machines specially used for laboratory purposes, help you explore the accuracy research with temperature/vacuum/homogenize speed/homogenize time controllably and adjustable. Setup the parameters you want, find out the best formula. Working capacity from 1 Liter to 30 Liters.
B-Berbica. V-Vacuum function. M- Mixer machine. G-GLASS. S-STAINLESS STEEL. 2/5/10-Volume Liters
We have both glass kettles and stainless kettles, glass one only applies to small lab use kettles, which you can see through to know the formula mixing test status. Since the glass only can be made in a single layer, it doesn't support a heating function.
Stainless steel is widely used for both laboratory kettle and large-scale batch production mixer machines. We can make the kettle with three layers, support heating function and keep warm, cooling and temperature control system.

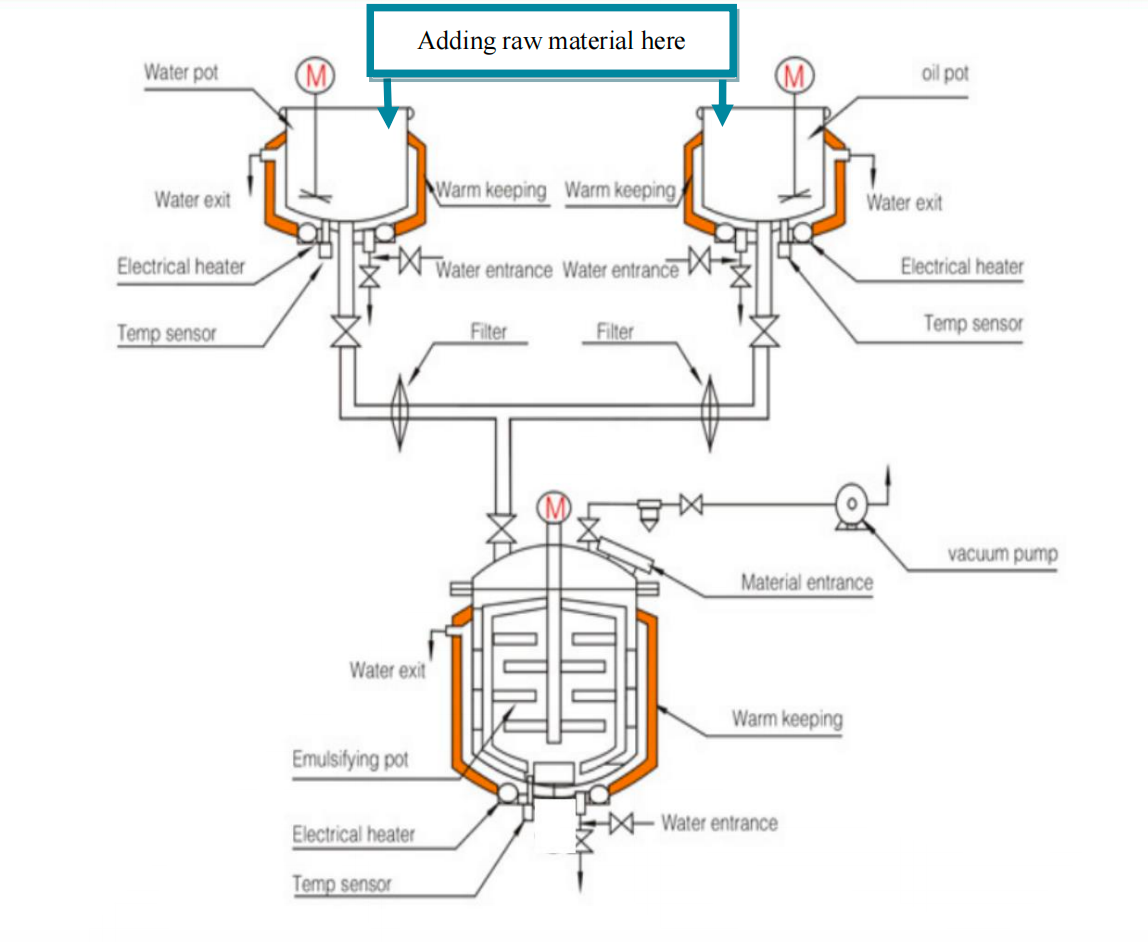

BVM series vacuum emulsifying mixing system is still the most widely used model. It is the upgrade version of BH series easy stand homogenizer. You can see it is multifuctional or optional- Heating system, vacuum system, water and oil pre-mix tanks, lift up and down the cover, and even scraper mixer to clean the kettle wall during mixing, which make sure the product is mixed well. Those functions make the machine suit for more complicate production process, widely liquid emulsion product applicable. Production Capacity various from 1 liter to 5,000 liters or even larger of OEM design.
Feel free to contact us for more information.
No. | Item Name | Details | Remarks |
|
1 | Homogenizer work capacity | 3~8 liters | Design volume 10 Liters SUS316L Material |
|
2 | Homogenizing system | Speed control 0~4,000 rpm. Power 1100 W | VFD control |
|
3 | Scrapper & Paddle Mixer | Speed control 0~86 rpm. Power 550w. | Scrapper mixer equipped VFD Control |
|
4 | Kettle | Three layers. two Jackets Inner layer 3mm middle layer 3mm Outer layer 3mm | GMP sus316L Outer layer to keep warm and protect from heat hazard |
|
5 | Kettle body | Support tilt and bottom valve discharge | Body tilt after cover lift up |
|
6 | Kettle Cover | Electric lift up and down 0.05kw | Stage control |
|
7 | Temperature display | Probe Thermometer（<=200℃） | Panel setup control |
|
8 | Heating Method | Electric heating pipe inside jackets 2KW |
|
|
9 | Cool method | Tap water or chill water |
|
|
10 | Vacuum display | Extreme vacuum -0.08Mpa | Vacuum Motor 0.18kw |
|
11 | Work condition | On the ground |
|
|

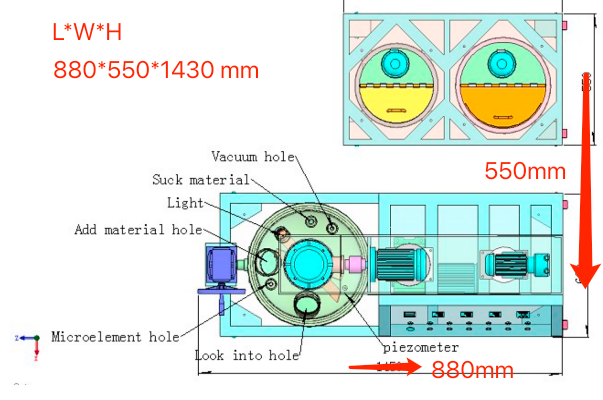

12 | Stand Space | L*W*H 800mm*550mm*1430 mm | Different volume different size |
|
13 | Power | 380V 50HZ 3 phase |
|
|
14 | Net Weight | 80kg |
|
|
15 | Wheels | With wheels and brake | Easy to move and lock down |
|
16 | Warranty | One year warranty | Whole Use-life long service |
|
Pre-Mix Kettles(One oil kettle and one water kettle) (Optional) |
17 | Water kettle | 7.8 Liters, mixer 0.25kw, 1200 rpm disperse, heating 1kw, two layers jacket |
18 | Oil kettle | 7.8 Liters, mixer 0.25kw, 1200 rpm disperse, heating 1kw, two layers jacket |
Control System |
19 | Control Cabinet | All in one bult-in front button control - speed, time, vacuum, temperature (adjust and display). |
