FM-G10 Automatic Vertical Liquid Sauce Paste Weight Packing Machine

Automatic fill liquid sauce into bags.
The machine makes the suit bag by itself, then code it, and fill and back seal.
Suit for liquid sauce, food paste, with small particles also suit in applicable.
Availability:
Quantity:
  • FM-G10

  • Berbica

  • 8422303090

Berbica FM-G10 Automatic food sauce packing machine 200~6000 gr.

Overview

FM-G10 Automatic Vertical Liquid Paste Packing Machine is an automatic bag sauce weight packing machine.

It can automatically finish all the process from make the bag into suit size, code it, fill it and weight, back seal it.

it support both square rectangle bags also support cutomize bevel edge bags.

Automatic fill and seal bags.

For hot seal bag, PE bags etc.

Weighing function.

Bag width 75 ~ 250 mm.

Bag length 120 ~ 450 mm.

Square or special bevel edge bags.

5 ~ 30 bags / minute.

Weigh range 200 ~ 6,000 grams.

Air pressure 0.6Mpa

Air consumption 0.4 m3 / minute.

Widely used for cream, sauce, salad, custard sauce, ketchup, mayonnaise, oil, drinks etc liquid or thick sauce.


Product Parameters


No

Name

Description

1

Filling system

2.2KW Lobe Pump

2

Pipeline

OD-51MM, SS304 food GMP standard

3

Transfer

L=1300mm belt transfer

4

Package type

Vertical bags backside seal. Rectangle bags

5

Package weight

200g to 5000g

6

Speed output

6 ~12 bags per minute (2000g)

7

Bag length

150-450mm

8

Bag width

110-250mm

9

Code function

Code machine,Model NY-803A

10

Bag length control

Sensor marker

11

Power

380V  7.0Kw;  Pump 380V  2.2Kw  Support OEM

12

Air pressure

0.6MPa,0.5m3 /min

13

Bag material

NY/PE(Thickness 0.09 -0.11mm)

14

Machine weight

800kg(Main machine 450Kg,Pump 350Kg)

15

Material

SS 304

16

Main Dimension

1200mm*1000mm*1860mm(L*W*H)

17

Filling lobe pump

1700mm*900mm*1250mm(L*W*H)

Packaging & Shipping

Plywood standard wooden case for exportation purpose.

01_2095_1571Bag sauce filling machine_527_527

1729500544824 Berbica clients packing workshop.pic Food sauce

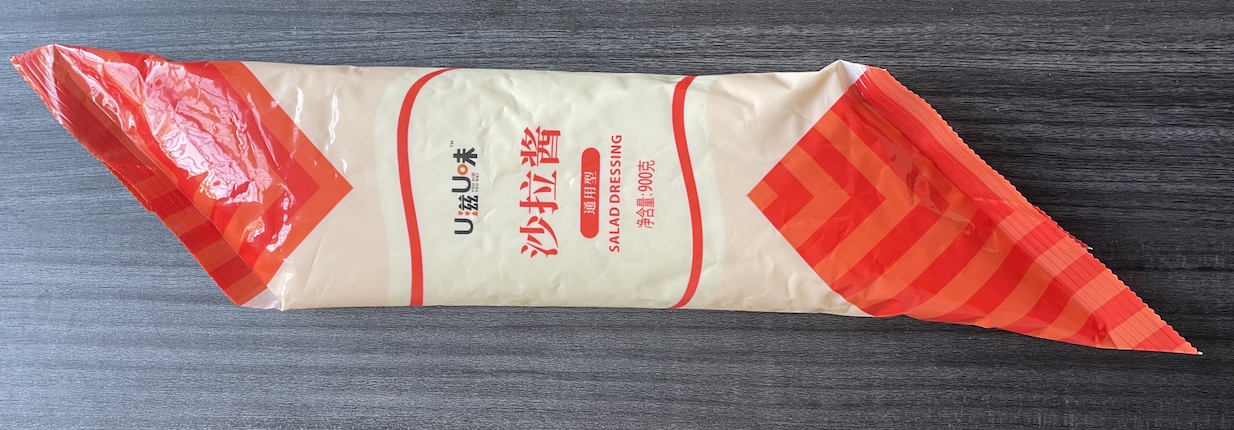

Salad sauce.pic

Our Services

1 year warranty.

Online supportin.

Support engineer trip on site.

Company Information

About us

Wuxi Berbica Technology Co., ltd is a self - design and manufacturing company that gathers teams specialized in highly innovative industrial mixing and packaging solutions. Our main products are homogenize mixer, filling machine, pumps and full production line solutions. Headquartered in Wuxi city, China, around 100 miles from Shanghai. In 2019, we set up our first branch office in Toronto, Canada.

Berbica aims to provide customers with high quality machines and the best service support, as well as keep growing to be an ethical group company. Our independently developed and produced SP series emulsify production plant has gained a leading position in China market, benefits our partners from its features of super compact design, high efficiency, stability and user-friendly. Some of our clients have grown to be famous brands in cosmetic / food / pharmaceutical industry field.

Berbica hopes to inspire a better world f beauty through the kindness of our community, our innovative technologies, and the honesty of our words and actions.

FM- G10 bag packing machine workshopIMG_5979

FAQ

Q: What is the application?

A: Food sauce, paste, mayonnaise, jam. Cosmetic cream, liquid. Liquid etc.

Q: Are you a direct factory.

A: Yes, we are the direct factory and all price quoted is factory price. Welcome your visit to our factory in China.
